The Details

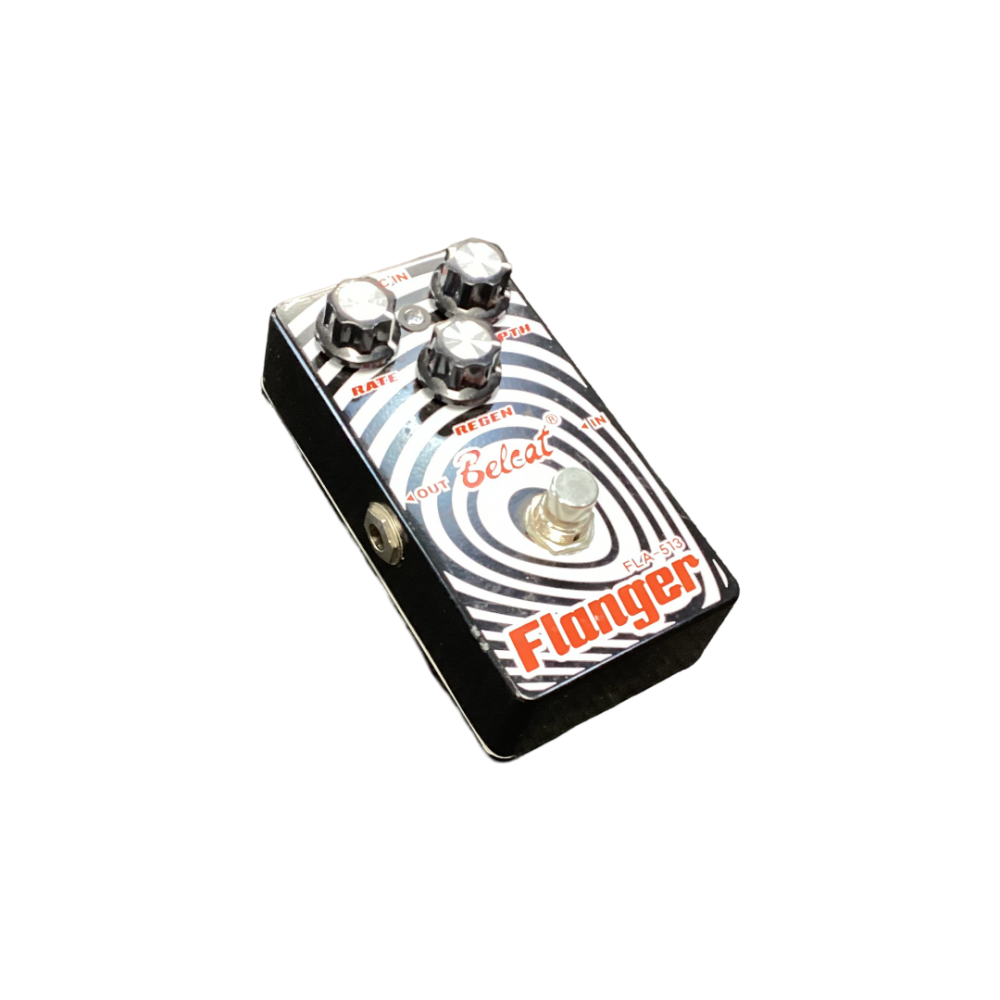

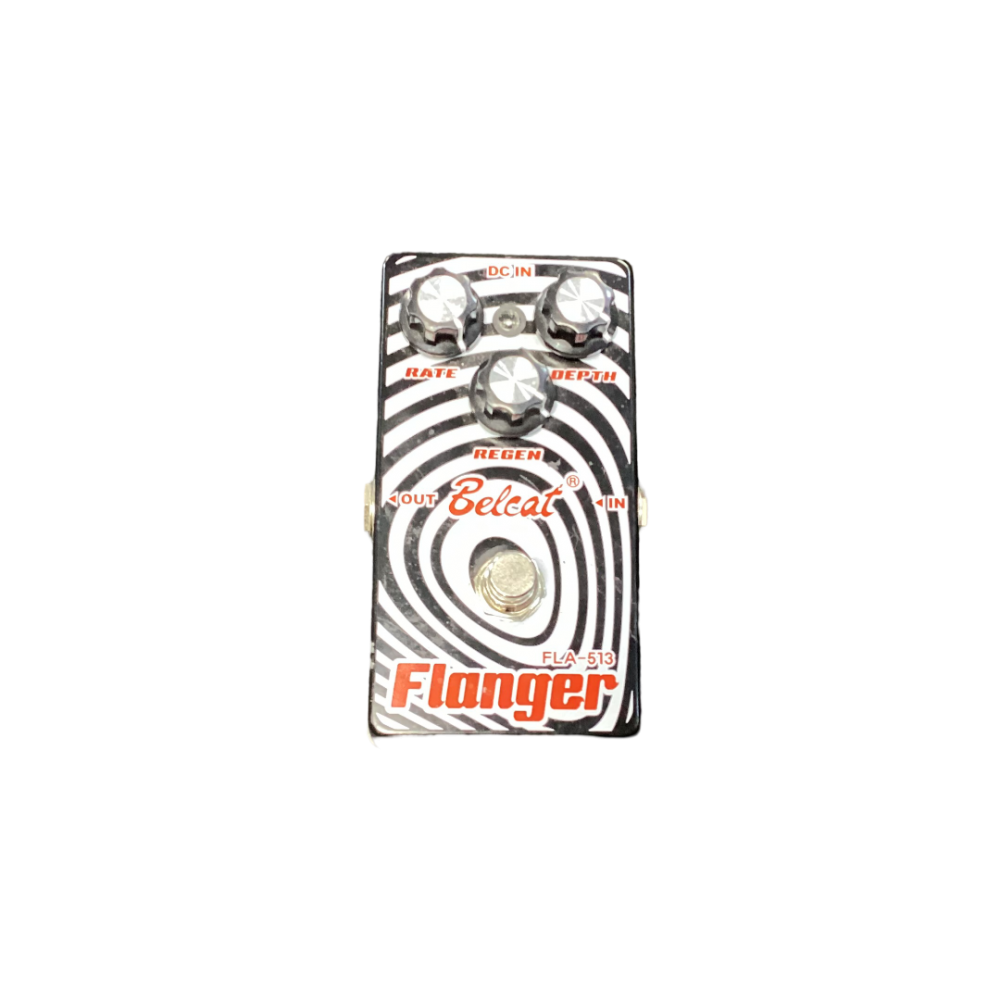

Flanging is an audio effect produced by mixing two identical signals together, with one signal delayed by a small and gradually changing period, usually smaller than 20 milliseconds. A flanger is an effects unit dedicated to creating this sound effect. The Belcat FLA-513 Flanger Pedal allows you to vary this time delay and create a flange effect of your own, thanks to the dedicated "Rate", "Regeneration" and "Depth" controls housed on the solid steel casing; a casing with a footswitch that can be operated with either a 9V battery or an Adapter. You don't have to worry about the FLA-513 in Bypass mode either; it operates with True Bypass Functionality. True Bypass sends input signal to output directly when the effector is off. The signal will flow well when the effector is off even in the absence of a power supply. These features together ensure this pedal an authenticity and enduring value for money.
Specifications:
- Input Impedance: 470K
- Output Impedance: 1KΩ less
- Delay Time: 1ms 13ms
- Speed Range: 0.1Hz 13Hz
- Current Draw: 20mA
- Connectors: Input Jack, Output Jack, DC Input
- Controls: Rate, Regeneration, Depth
- Bypass: True Bypass
- Power Supply: 9V Alkaline Battery or DC 9V Adapter
- Dimensions: W110 mm X H 60mm X D 53mm (4.3" X 2.4" X 2.1")
Additional Information
Condition: Very Good (7 out of 10). Minor scratches from use.
Weight: 0.5kg
Warranty: 90 Days
The Essentials
- Brand: Belcat
- Model Number: FLA-513
- Mo's Secret Code: P256092
- Effect Type: Modulation
