Notable Particulars
- 180-watt output delivers powerful monitoring for electronic drums, rehearsal and stage use
- Custom 12-inch woofer and horn tweeter provide full-range reproduction with plenty of low-end impact
- Angled cabinet directs sound towards the seated player for effective personal monitoring
- Integrated mixer provides separate V-Drums and line-input volume controls plus bass and treble EQ
- Dual XLR direct outputs allow connection to a PA, mixer or recording system, with stereo or dual-mono operation
The Details

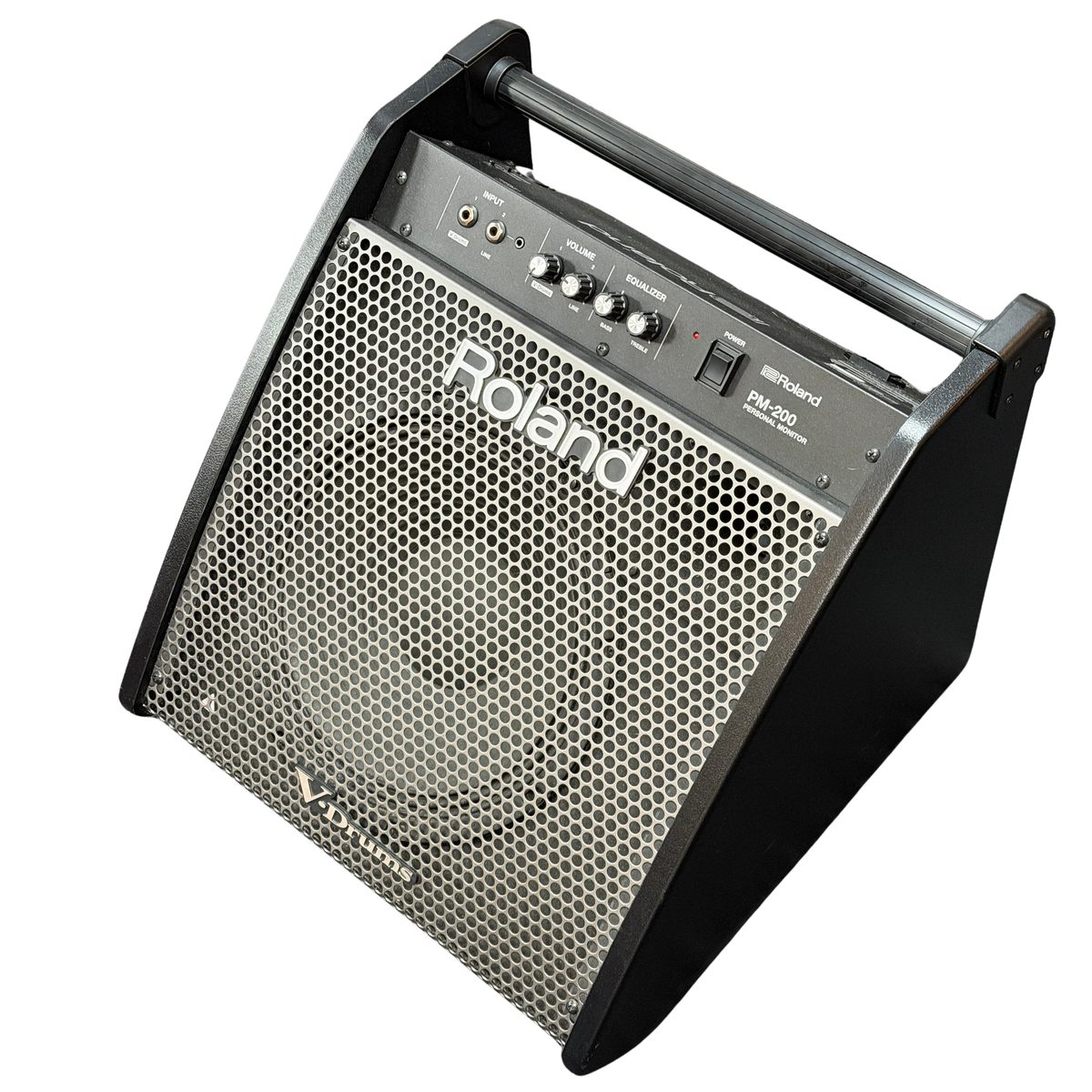

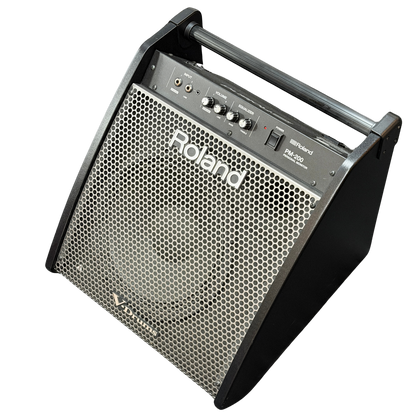

The Roland PM-200 is a purpose-built personal monitor designed to give electronic drums the weight, dynamics and detail they deserve. Its 180-watt amplifier drives a custom 12-inch woofer and horn tweeter, producing a broad full-range response capable of handling everything from deep electronic kicks to crisp cymbal transients. The wedge-style cabinet angles the speaker towards the player, making it particularly well suited to V-Drums setups.
Connections include a dedicated stereo 1/4-inch V-Drums input alongside stereo 1/4-inch and 3.5 mm line inputs, handy for backing tracks, additional percussion equipment and other audio sources. Separate V-Drums and line volume controls are joined by global bass and treble controls. Two XLR direct outputs can feed a mixer or recording setup, with selectable stereo or dual-mono operation.

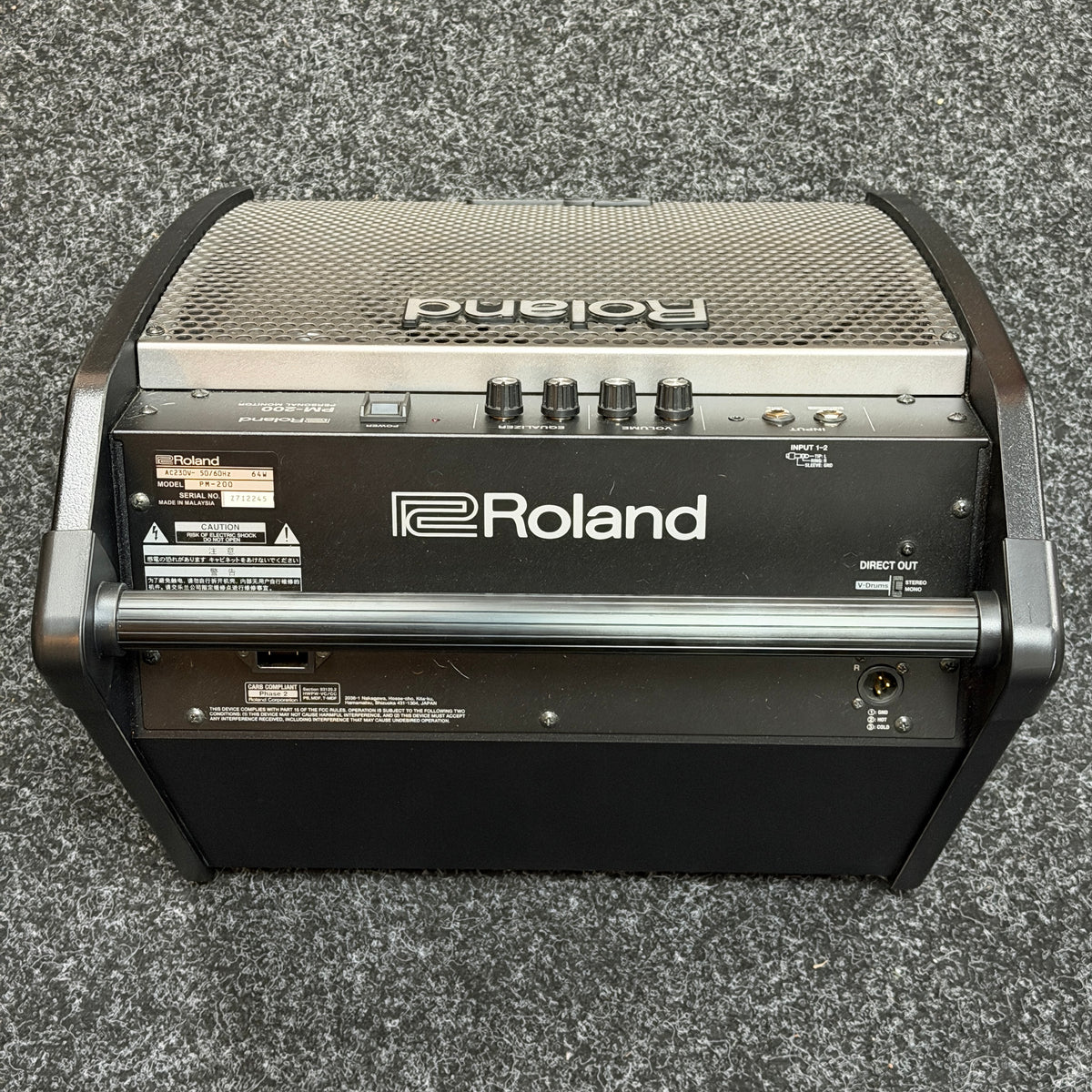

The full-width carrying bar doubles as a useful handle for repositioning this substantial 21 kg monitor. This example shows cosmetic signs of previous use, including visible marks and scratches to the control-panel area, but presents well overall for a working piece of stage equipment.
Rated output: 180 W
Speaker: 12-inch woofer with horn tweeter
Inputs: Stereo 1/4-inch V-Drums, stereo 1/4-inch line, 3.5 mm stereo line
Outputs: 2 x XLR direct out
Controls: V-Drums volume, line volume, bass, treble, direct-out mode
Dimensions: 458 x 469 x 420 mm
Weight: 21 kg
The Essentials
- Mo's Secret Code: P266996
