Sonifex S1 Radio Mixer (Pre-Owned)

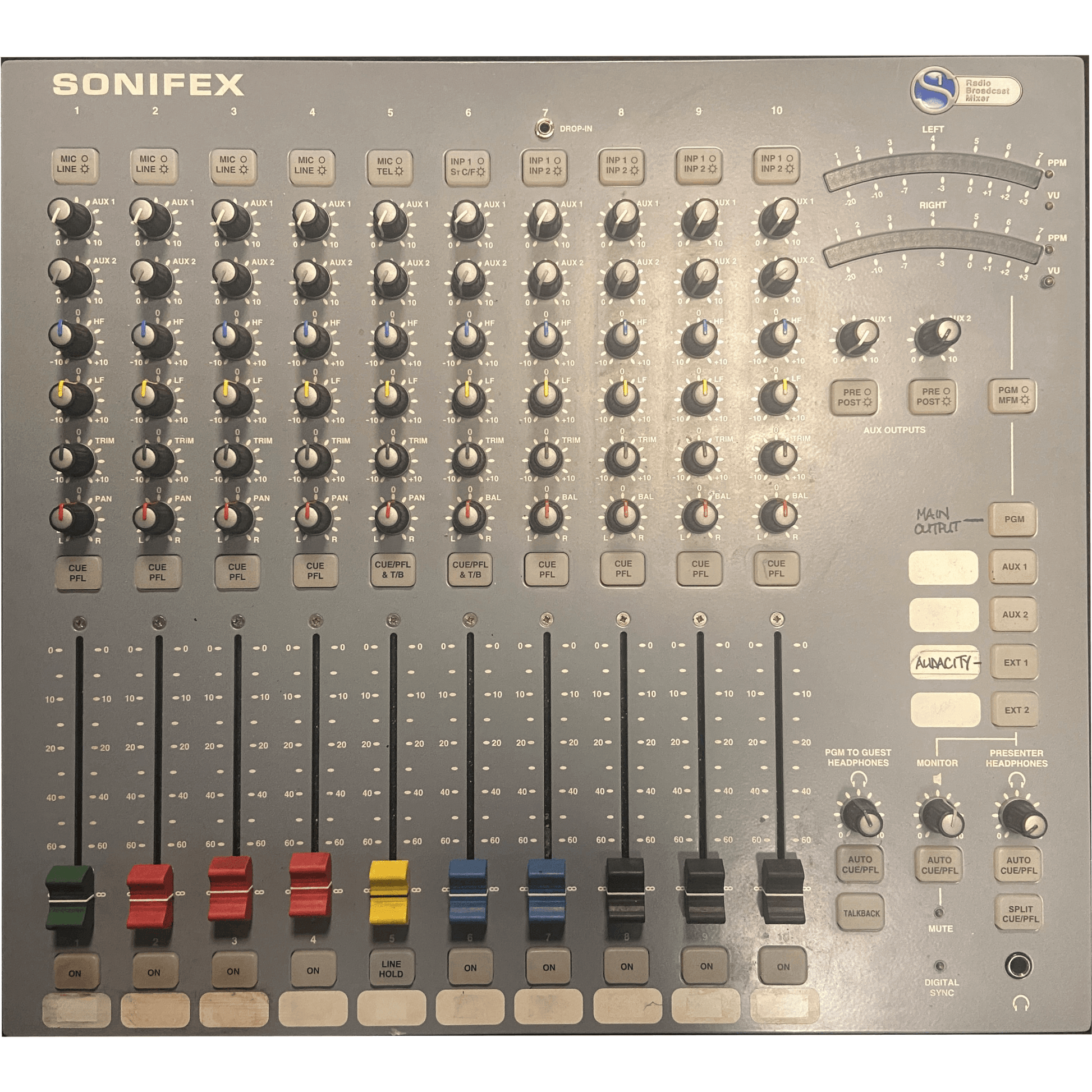

The Sonifex S1 mixer is a high performance compact, low cost, fixed format mixing console designed for on-air radio use. It can be fitted flush into a desk-top or can be rack-mounted by the addition of optional rack ears.

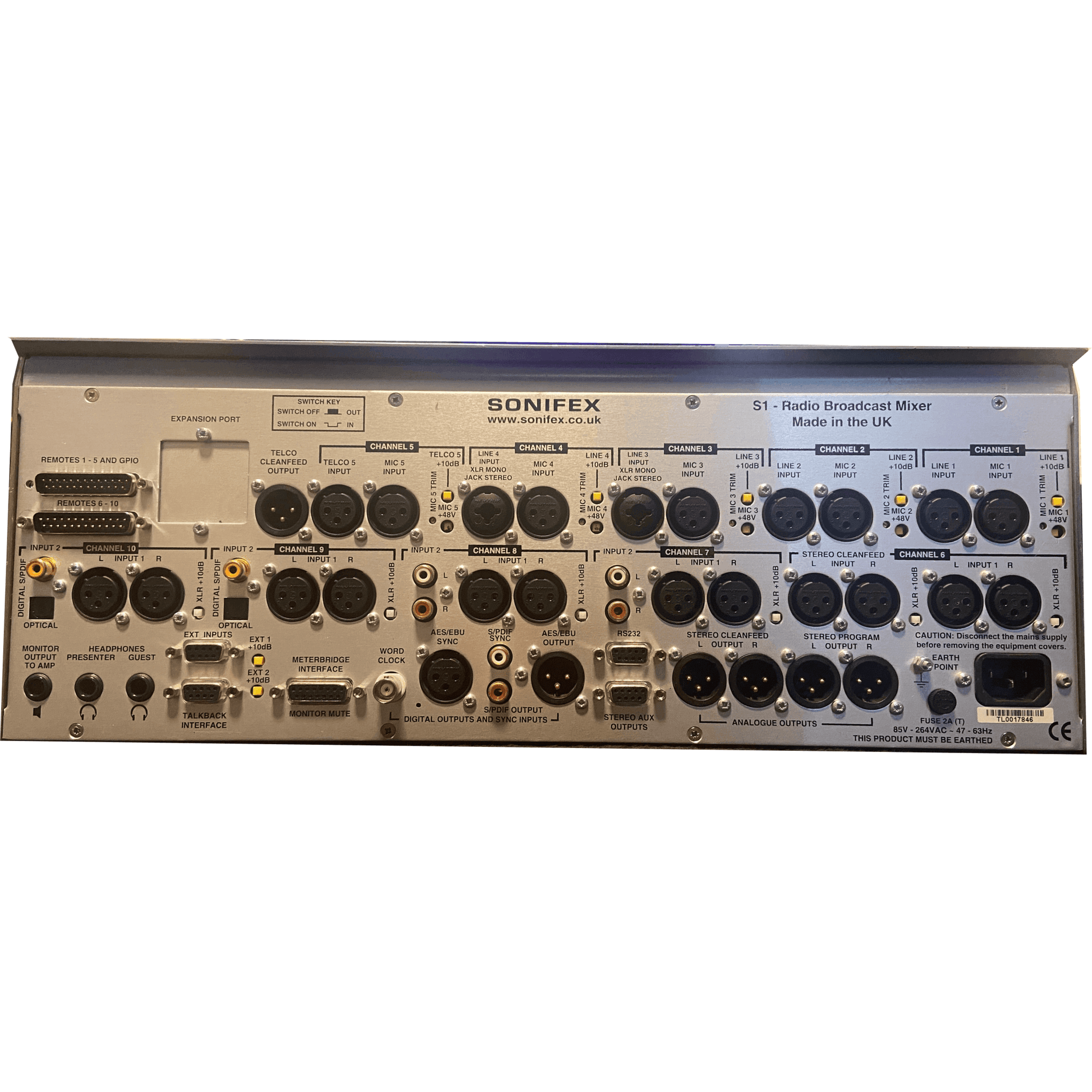

The rear connectivity panel can be rotated 90˚ onto the base of the unit providing easier connection to the unit when it is rack-mounted. It has an integral universal switch mode power supply, which uses an IEC inlet.

• High performance, ultra-reliable on-air radio mixer.
• Low cost.
• Easy to use.
• Small footprint, flush-mounting or rack-mounting.
• Analogue & digital inputs & outputs.
• Main stereo output buss plus 2 Aux output buses, pre or post fader selectable.
• Rotating rear panel for ease of installation.
• Integrated power supply.
• Remote outputs per channel.
• Fader start of ancilliary equipment such as CD players.
• Programmable general purpose I/O.
• Monitor muting on mic live.
• Mic-live/on-air sign switching.
• Monitor outputs for presenter & guest headphones, & speakers.
• Bright LED meter display PPM/VU selectable with separate meterbridge output.
• 100mm ALPS long-throw faders with control via VCAs.
• Separate telco & stereo cleanfeed o/ps for use with a telephone hybrid & codec respectively.
• Advanced automation facilities.
• Remote control via free SCi software.

The console consists of ten input channels:

• 2 x mono XLR mic/mono XLR line inputs.
• 1 x mono XLR mic/mono XLR telco input.
• 2 x mono XLR mic/mono XLR line inputs/ stereo ¼” jack unbalanced line input.
• 1 x stereo XLR line/stereo XLR cleanfeed input.
• 2 x stereo XLR line/stereo RCA inputs, one with a 3.5mm stereo aux input.
• 2 x stereo XLR line/stereo SPDIF & Toslink digital inputs.

Providing in total 5 mic, 4 mono line, 10 stereo analogue, 2 stereo digital, 1 telco & 1 stereo cleanfeed inputs which you can switch between.

Specifications

• Mic Input: > 1k5Ω electronically balanced
• Mono Line Input: > 20kΩ electronically balanced
• Stereo Line Input: > 20kΩ electronically balanced
• PGM Output: < 50Ω electronically balanced
• Monitor Outputs: < 75Ω unbalanced
• AES Input/Output: 110Ω
• S/PDIF Input/Output: 75Ω
• BNC Wordclock Input: 50Ω

• Mic Input: Preset pot +21dB to +64dB ref -50dBu, TRIM pot ± 12dB
• Mono Line Input: Switch 0dB to +10dB ref 0dBu, TRIM pot ± 12dB
• Stereo Line Input: Switch 0dB to +10dB ref 0dBu, TRIM pot ± 12dB
• Telco Input: Switch 0dB to +10dB ref 0dBu,
• TRIM pot ± 12dB
• Stereo Cleanfeed Input: Switch 0dB to +10dB ref 0dBu, TRIM pot ± 12dB
• Digital Input: 0dBFS = +18dBu on input; TRIM pot ± 12dB allowing 0dBu to +24dBu
• Digital Output: 0dBFS = +18dBu

• Mic Input: 40Hz to 20kHz –1dB, +0dB
• Line Inputs: 20Hz to 20kHz –0.5dB, +0dB
• RCA Inputs: 20Hz to 20kHz –0.5dB, +0dB

• Mic Input E.I.N.: -130dB with 150Ω source.
• Stereo Inputs -92dBu ref 0dB (fader down, no routing), -91dBu (fader down, one channel routed), -86 dBu (unity gain, one channel routed), -83 dBu (unity gain, two channels routed)

• Total Harmonic Distortion: 0.015% at 1kHz, 0dBu 0.015% at 10kHz, 0dBu
• Inter-Channel: < -80dBu typically
• LF: Shelving at 100Hz ± 7dB
• HF: Shelving at 6.5kHz ± 7dB

• Pan Range: Off/-3dB centre/off
• Balance Range: ± 6dB

• Mic Input: >60dB typically
• Sync Input Sample Rate Range: 32kHz – 96kHz
• Output Sample Rates: 32kHz, 44.1kHz, 48kHz, & 96kHz (Using Onboard Clock)
• Output Sample Width: 24 bit

• Headphone Output Load: >45 ohms, recommended 400
• Maximum Output (Analogue): +26dBu balanced into 2k or greater

• Phantom Power: +48V individual per mic input
• Gain Switch: +10dB per XLR balanced mono & stereo input & EXT 1, EXT 2 inputs

• Analogue Inputs: 5 x Microphone XLR 3 pin sockets, 2 x Mono line XLR 3 pin sockets, 2 x Mono/stereo line combi XLR 3 pin sockets & 6.35mm stereo jack sockets, 1 x Telco XLR 3 pin socket, 5 x Stereo line pairs XLR 3 pin sockets, 2 x Stere line pairs phono sockets, 1 x Stereo cleanfeed pair XLR 3 pin sockets, 1 x Stereo insert, 3.5mm jack socket
• Digital Inputs: 2 x S/PDIF phono sockets,, 2 x TOSLink optical connectors
• Analogue Outputs: 2 x XLR 3 pin plug (balanced), 9-way ‘D’-type socket (balanced), XLR 3 pin plug (balanced), 2 x XLR 3 pin plug (balanced)
• Monitor Outputs: 6.35mm stereo jack sockets (2 x Presenter, 1 x Guest, 1 x Monitor)
• Digital Outputs: AES/EBU XLR 3 pin plug (balanced) or S/PDIF phono socket.
• Digital Sync Inputs: Wordclock on BNC, AES/EBU on XLR socket and S/PDIF on phono socket.
• EXT Inputs: 9-way ‘D’-type socket
• Mono Remotes: 25-way ‘D’-type plug
• Stereo Remotes: 25-way ‘D’-type plug
• Meterbridge Port: 15-way ‘D’-type socket
• Talkback Interface: 9-way ‘D’-type socket
• RS232 Serial Port: 9-way ‘D’-type socket
• Mains Input: Filtered IEC, continuously rated 85-264VAC, 47-63Hz, 45w nominal, 50w peak
